Engine Controls

2011.08.18: Since my firewall forward installation is somewhat non-standard (vertical induction FI is not uncommon, but not one of Van's supported configurations...), I had to determine my own engine control cable routing.  Some builders with similar engine configurations have used more-or-less the standard cable runs with slight modifications, and others have strayed further.  I decided to stray further because I thought I could improve on Van's design.

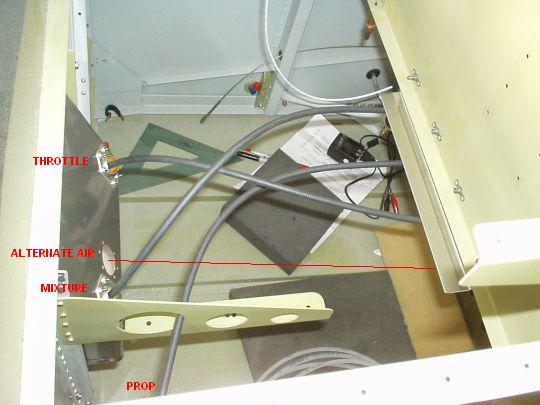

One aspect of Van's design that I specifically didn't like was how the throttle, mixture, and alternate air cables penetrate below the cabin heater vent.  This area is already congested with plumbing and electrical, and running the engine control cables through there also has them dangling near the co-pilot's feet / rudder pedals.  Instead I decided to run the control cables pretty much horizontally from the sub-panel and penetrate the firewall up high through the recess area.  Then on the forward side they drop down sharply toward the throttle body.  This took some planning and head-scratching, but I'm very happy with the geometry I came up with.  It works well on both sides of the firewall and makes for a much neater installation than Van's.  (Note that I kept the prop cable routing per plans.  It worked well as is.)

I also didn't like how Van's uses plastic snap bushings for firewall penetrations.  Not very fireproof...  So I used steel spherical grommets, which take care of the fire concerns, as well as securely anchor the cables while allowing them to penetrate the firewall at oblique angles.

Now, no surprise, since this isn't one of Van's standard installations, the lengths of control cables supplied in the firewall forward kit didn't all work well for me (only the prop control cable was fine, as it was a standard installation).  Luckily, Van's did have other lengths available from other aircraft or other engine configurations that did work well for me.  So I was able to get by on other off-the-shelf cables from Van's, nothing custom.  The lengths of cables I ended up using:
Throttle 46.5 inch
Prop 48.0 inch
Mixture 50.5 inch
