General Notes on Wiring

This section summarises some general information I gathered, lessons I learned by experience, and conventions that I followed when it comes to the airplane's wiring.

Wire and cable types and sizes

Unshielded wire

Circuits carrying significant DC current use MIL-W-22759/16 wire, which is the standard aircraft Tefzel-insulated tin-plated stranded copper wire.  It is rated for up to 150° C and 600 V.  For practicality, 18 AWG wire (MIL-W-22759/16-18) will generally be used for all circuits carrying up to 7.5 A loads, and will be protected by up to a 10 A circuit breaker or other current-limiting device.  For circuits carrying heavier loads, or as dictated by voltage drop considerations, heavier-gage wire will be selected as needed.

Shielded wire and cable

Noise-susceptible sense circuits (switch closures, position sensors, etc.) and noise-inducing circuits carrying alternating currents (PWM servo or lighting control, etc.) use MIL-C-27500/18 single- or multi-conductor shielded cable.  Note that the individual wires in MIL-C-27500 are MIL-W-22759.  For practicality, 22 AWG wire (MIL-C-27500/18-22) will generally be used for all circuits carrying up to 3 A loads, and will be protected by a 5 A circuit breaker or other current-limiting device.  Alternatively, 24 AWG wire (MIL-C-27500/18-24) may be used for circuits carrying only negligible current.  Note that the current-limiting device may be as simple as a series resistor for some circuits that carry only negligible current.

For multi-conductor cables, the individual conductor insulators are color-coded according to one of two standards (which is annoying and potentially confusing... why did they do that?).  And for each standard the colors are either stripes over white, or alternatively just a solid color (11 through 15 being double stripes over white, or a stripe of the second color over the first color).

Color coding standard A:
1. white
2. blue
3. orange
4. green
5. red
6. black
7. yellow
8. violet
9. gray
10. brown
11. blue/blue
12. orange/orange
13. green/green
14. red/red
15. black/black

Color coding standard B:
1. red
2. blue
3. yellow
4. green
5. white
6. black
7. brown
8. orange
9. violet
10. gray
11. red/white
12. blue/white
13. yellow/white
14. green/white
15. black/white

Coax cable

Antenna installations will generally use RG-400, dual braided-shield, Tefzel-insulated, 50 ohm coaxial cable.  Both RG-400 and RG-142 are in common use in light aircraft these days, and have superseded the ancient PVC-insulated RG-58.  The key difference between RG-142 and RG-400 is that RG-142 uses a solid core wire whereas RG-400 uses stranded wire.  As a result, RG-142 is favored for easier connector installation, and RG-400 is favored for cable routing since it is more flexible and less prone to fatigue damage.  Otherwise, RG-142 and RG-400 can be considered equivalent in their electrical properties.

I'm standardizing on RG-400.

Connectors

BNC and TNC

BNC (Bayonet Neill-Concelman) and TNC (Threaded Neill-Concelman) connectors are commonly used for terminating RF coax cable.  They are used extensively in terminating antenna cables in general aviation aircraft  (VHF comm, nav, ELT, transponder, GPS, etc.  BNC is still more common than TNC, but TNC with its generally better performance at microwave frequencies is finding more use in newer avionics, and especially those components operating above 1 GHz (GPS/WAAS, transponder, ADS-B).

A couple of gotchas to be aware of:

1. BNC connectors come in both 50 ohm and 75 ohm impedence.  General aviation antenna applications are typically 50 ohm impedence.

2. BNC connectors are available for the plethora of different coax cable standards available.  While RG-400 cable has largely replaced RG-58 in new aviation installations, RG-58 can still be commonly found in aviation as well as non-aviation applications.  A subtlty with connectors is that RG-58 and RG-400 cable are similar enough in their basic dimensions that connectors designed for RG-58 will typically fit RG-400 cable well enough, and I've observed that connectors sold by many aviation sources for RG-400 cable are actually specified by the manufacturers as being for RG-58, not RG-400 cable.  While this seems to be common and hasn't proven problematic in the field, it seems to me that using the correct connector would be better practice.  And since connectors specified for RG-400 are readily available and not significantly more expensive, that is what I intend to use.  Note also that the RG-400 connectors are generally available from the usual non-aviation sources (Allied Electronics, Digikey, Mouser, Newark, etc.) at lower prices than the aviation-specific sources.

To keep things simple, I will standardize on the following connectors for RG-400 cable:

Amphenol / Connex 112514: straight BNC plug
Amphenol / Connex 112526: right angle BNC plug
Amphenol / Connex 112652: bulkhead BNC jack
Amphenol / Connex 122372: straight TNC plug

AMP/Tyco Miniature Circular Plastic Connector (Miniature CPC)

The AMP/Tyco Miniature Circular Plastic Connector (Miniature CPC) series are environmentally rugged, compact, and versatile, making them well suited for wire harness termination for a majority of airframe functions.  These connectors are available in free-hanging and panel mount varieties, and two shell sizes: size 8 for up to 4 contacts, and size 11 for up to 9 contacts.  They use stamped open-barrel crimp contacts, which are available for a variety of wire sizes (18 AWG to 30 AWG), and seem to do well with a generic crimping tool.  They are rated for 7A (with 18 AWG wire), which will suffice for all but a few airframe functions.  They are relatively cheap, and readily available from Digikey, Mouser, etc.

AMP MATE-N-LOK

Notes.

AMP PIDG

Notes.

DB Connectors

Notes.

Wire harness supports

Cusioned clamps (a.k.a. "Adel" clamps)

Cushioned clamps are used extensively on production aircraft and are one of the best ways to secure a wire bundle (or tubing) to a structure where a screw can be used.  They come in a wide variety of diameters, and can be selected to fit wire bundle snugly.  Of the different flavors available, I prefer to use the MS21919-WDG series clamps, which have a "wedge" at the opening that helps maintain a circular shape to the inside of the clamp and therefore spread the loads more evenly and not tend to pinch a corner.  The slightly more common and slightly cheaper MS21919-DG series clamps don't have the wedge but are otherwise identical.

Snap bushings

Van's makes extensive use of hard plastic "snap bushings".  These slip into a hole and snap into place with no other fasteners or adhesives required.  They then provide a smooth broad low-friction inner surface for the wiring to run through, thereby preventing chafing of the wires.  These come in a variety of inner and outer diameters, so they can be matched to the wire bundle fairly closely if planned in advance, but since they are rigid, the wire bundle should fit somewhat loosely and therefore will have the freedom to vibrate some inside the snap bushing.  These are not milspec parts and are not generally used in certificated aircraft, but they seem to work well in the experimental fleet.  Heyco is the common manufacturer for these as sold by Van's, Spruce, etc., although other similar generic brands of snap bushings do exist.

Wire ties (a.k.a. "zip ties")

Zip ties are one of the most versatile inventions of all time, right up there with duct tape.  They can be used to hold a wire bundle together along its length, or to secure it to a structure with a zip tie base, wrapping it around a structure, or slipping it through one or two small holes in the structure.  One important caution: do not secure a zip tie around a structure that is prone to heavy vibration, such as an engine mount.  The zip tie, made of hard nylon, can actually wear through the metal structure over time.

Found some neat little zip tie bases: HellermannTyton p/n CTM0, sold by Spruce in bags of 50 as p/n 11-03987, and can also be found in different quantities through various non-aviation vendors.  These bases are very compact, fairly rugged, and most uniquely are installed with a hard fastener, not an adhesive pad.  This particular part number has a hold for a #6 screw.  And incidentally, it also works really well with an LP4-3 pop rivet.

Non-rigid conduit

Some folks use split corrugated plastic conduit for their wiring runs.  This can help against chafing in some situations, although preferably chafing should be prevented by adequate separation from structures).  Conduit can also make it easier to fish wires through after the fact.  But otherwise it does not offer any significant rigidity that would alleviate the need for other means of mechanical support for the wiring.  I don't see much harm in using conduit, but a few potential downsides are water trapping, less air cooling for the wires, reduced access for inspection of the wires, and the conduit itself has edges that could chafe the wires.  I decided to not use this type of conduit, or any conduit for the most part (with one exception, see below).

UPDATE: I bought some of Van's conduit to possibly use in the forward cockpit.  Seemed like cheap plastic... so I took a piece and conducted an unscientific burn test -- put a flame to it and see what happens.  To my surprise it actually stood up to the flame with no noticeable effect for several seconds.  But then it ignited and burned vigorously.  At that point, when I removed the source of the original flame, the conduit had no inclination to self-extinguish.  Kept on burning, and producing an aweful smelling thick black smoke.  Conclusion: this conduit has no place in my airplane.

Rigid conduit

The aft fuselage lacks any good means for supporting the wire harness running out to the tail between bulkheads F-707, F-708, and F-710.  There's a distance of approx 2 ft between bulkheads, which is too far of a span for an unsupported wire bundle.  Some folks attach sticky zip tie bases to the bottom skin and attach the wiring to that, and some folks drill holes in the J-stringers and zip-tie the wiring to that, but both seem pretty kludgey to me.  The skin is not strong, and attaching the wire bundle to it will add stress.  I'm also uncomfortable with the idea of perforating the J-stringers, as well as the potential for the wires to rub on the edges of the stringers.  I decided to take a different approach entirely and install a rigid conduit that spans the distance for the wiring to run through.  I considered both plastics and metals for the conduit material, and ultimately decided to use aluminum, being light, strong, easy to work with, and non-flammable.

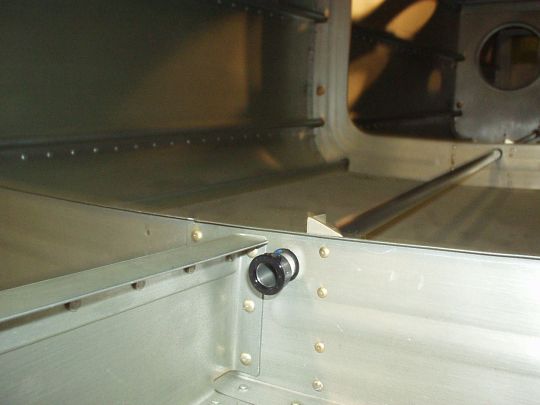

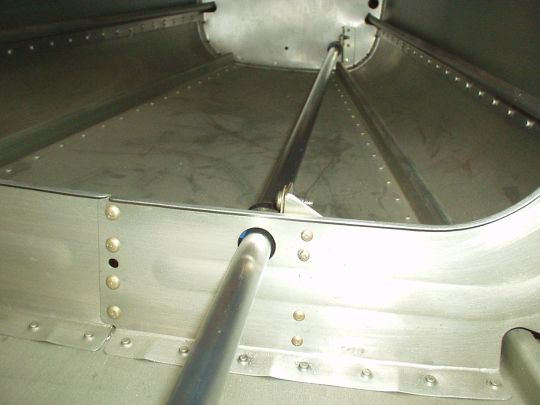

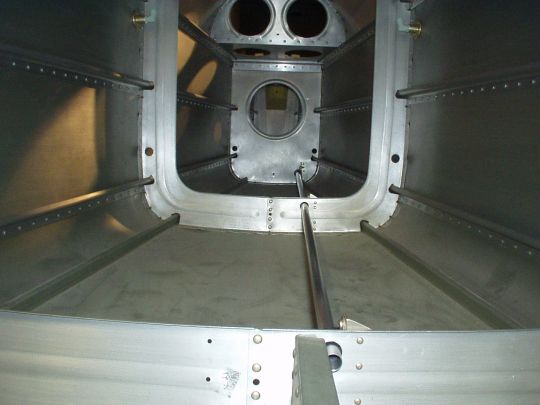

I used 5052-0 tubing, 1/2" OD and 0.035" wall thickness for a 0.43" ID, just over 4 ft long and weighing about 4 oz.  I passed it through the existing 0.625" holes in the F-707 and F-708 bulkheads, and fashioned a hole in the F-710 bulkhead that is co-linear with the other two, so that the tube can remain straight.  I then fitted a bracket to each bulkhead to which the tubing can be fastened with a cushioned clamp (MS21919-WDG8) such that it is centered in the hole and cannot touch its sides.  As for the ends of the tubing, I carefully de-burred them and gave them a bit of a "trumpt" shape on the inside so that the wires won't rub against a sharp edge.  I also slipped some snap bushings over the tubing, which is an unconventional use of them, but fit perfectly and provides a very benign exit to the conduit.  Ok, too many words, here are some photos:



References

FAA Advisory Circular AC 43.13-1B: Chapter 11. Aircraft Electrical Systems

"The AeroElectric Connection" (Bob Nuckolls) [NOTE]

"Aircraft Wiring for Smart People ~ A Bare-Knuckles How-To Guide" (A rebuttal to Bob Nuckolls by Blue Mountain Avionics' Greg Richter) [NOTE]

NOTE:Although I watch in amusement, I will not take sides in the feud between Greg Richter and Bob Nuckolls.  I've read both texts, and I've found them both to be useful, insightful, and imperfect.
