Vertical Stabilizer Construction

Start: 2004.01.25, Completion: 2004.09.06, Hours: 40.0



2004.01.25: (0.5) Marked and center-punched the lightning hole centers on the rear spar doubler (VS-808PP).  Found that the blade of the fly cutter I just bought (Craftsman 925293 "Wheel and Circle Cutter") is chipped and will have to be exchanged.  Back to horizontal stabilizer.

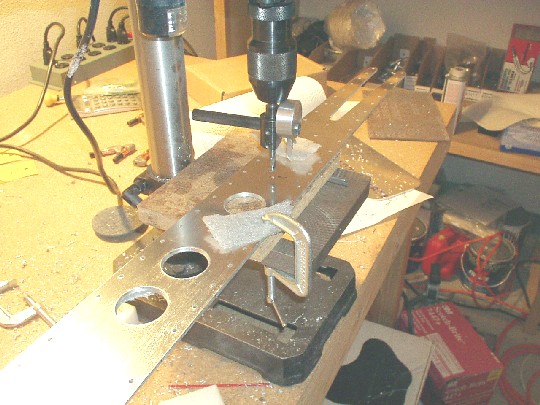

2004.02.18: (1.0) Cut the five 1.5" lightning holes in the rear spar doubler (VS-808PP).  Used a fly cutter in the drill press with WD-40 for lubrication/cooling.

2004.02.19: (0.5) Cut the two 2.0" lightning holes in the rear spar doubler (VS-808PP).

2004.02.20: (1.0) Cleaned up the lightning hole cuts.  Started edge finishing the rest of the VS-808PP.

2004.02.22: (1.0) Edge finishing the VS-808PP.  Smoothed out the inside cuts of the "tuning fork" with files.  Now rounding over all the edges.

2004.02.24: (0.5) Clecoed together the rear spar assembly (VS-808PP, VS-803PP, VS-410PP, VS-411PP, VS-412PP) and back-drilled the two missing holes of the top VS-410PP rudder hinge bracket.

2004.02.26: (3.0) Edge finishing the VS-404, VS-405, VS-406, and VS-407 ribs.  Erick came over and lent a hand.

2004.02.28: (2.0) More edge finishing...

2004.07.19: (2.0) And more edge finishing... ribs done.

2004.07.24: (3.0) Edge-finished the spar channels.  Straightened/fluted/fitted the ribs.  Clecoed together the understructure.

2004.07.26: (1.0) A little more fine-fitting, then final-drilled the spars and ribs.  Did most of the drilling with the skin clecoed on to prevent any twisting or shifting.

2004.07.28: (2.0) Final-drilled the skin to the understructure.

2004.07.29: (1.5) Disassembled the VS and deburred all the holes.

2004.08.03: (1.0) Edge-finished the skin.

2004.08.04: (1.0) Dimpled the spar and rib to skin holes.

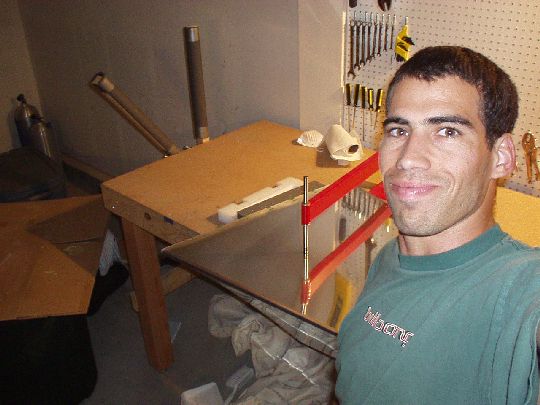

2004.08.13: (1.0) Dimpled/countersunk the lower rear spar channel to spar doubler holes.  Started dimpling the skin.

2004.08.14: (1.0) Finished dimpling the skin.

2004.08.17: (0.5) Studying DWG 27A, I concluded that the lower corner holes of the bottom hinge bracket do need to be riveted now, during construction of the VS.  There's a comment in the manual to the contrary, but I concluded that the comment applies to the tail dragger only, not the -7A.  Got confirmation from Van's tech support.  Went ahead and drilled, dimpled, and countersunk the two holes.

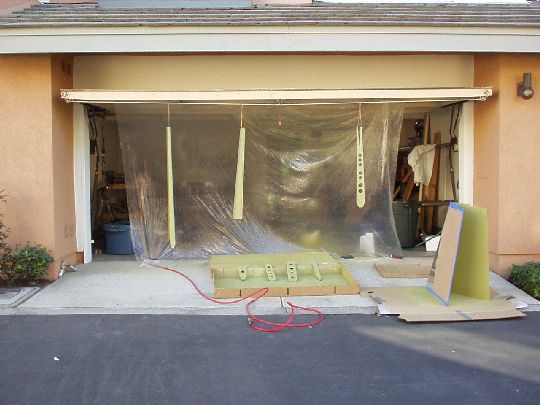

2004.08.28: (7.5) Cleaned, etched, alodined, and sprayed epoxy sealing primer on the VS spars, ribs, and inside surface of the skin.

2004.08.30: (2.0) Riveting the rear spar.

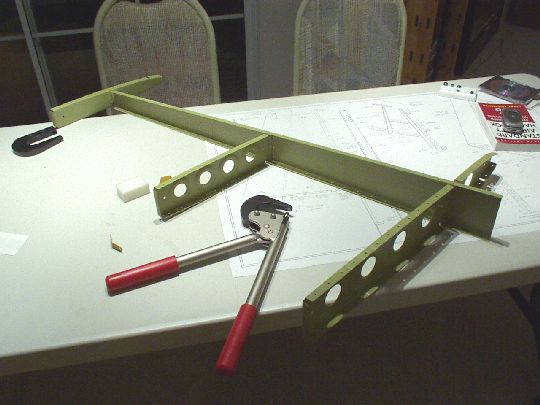

2004.08.31: (1.0) Finished riveting the rear spar except for three rivets I couldn't get to with the squeezer (centers of hinge brackets).  Will have to use the gun.
Riveted the ribs to the front spar and clecoed on the skin.

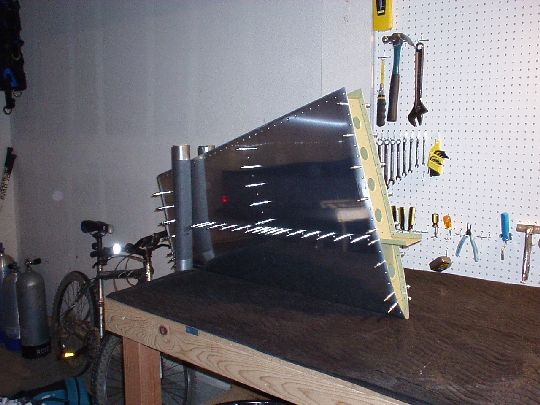

2004.09.06: (6.0) Finished riveting the rest of the VS.
