Propeller Governor

2011.04.21: Overview: The prop governor is a mechanical / hydraulic device that regulates oil pressure to the propeller (which controls the blade pitch) to attain the RPM selected by the pilot.  On the IO-360-B1B engine, the prop governor mounts to a drive pad on the rear accessory case (other engine variants mount the governor forward).

The standard prop governor currently sold by Van's is a relatively new design from MT.  It is reputed among those who've installed it to have problems with hunting and surging, and has undergone at least half a dozen revisions over the past few years with limited success in alleviating these problems.  As many other builders have done the past couple of years, I've decided to use a different governor instead, the PCU5000X from Aero Technologies.  The PCU5000X is the experimental identical twin of the certified PCU5000, and these are actually a Jihostorj governor that is final-assembled, certified, and re-branded in the U.S.  These are widely reputed to be the best performing, most reliable prop governors on the market.  I purchased mine from American Propeller in Redding, CA.  My specific variant is p/n P-520-036/A-866 (this is actually Jihostroj nomenclature), which specifies oil to increase pitch, 0.866:1 drive ratio, control lever clockwise for high RPM looking at the head (not the base) of the governor.

Control cable bracket: Van's standard bracket is p/n VA-153-PC, and is designed to mount to 3 of the 6 screws on the head of the MT governor.  A similar arrangement will work well with the PCU5000X governor, but the head dimensions are just ever so slightly different that the VA-153-PC bracket won't quite work as is.  The inner diameter has to be opened up a bit more, and the 6 head screws are spaced a bit wider apart.  Some folks have elongated the mounting holes to make it fit, but I wasn't happy with elongating them as much as would be needed.  As a first attempt, I had my neighbor buzz weld the mounting holes shut so that I can re-drill them in the correct places.  But in grinding the weld flat, too much material was lost around one of the holes.  Oh well.  Second attempt, I fabricated a brand new bracket from stock sheet (0.063" 4130 chromoly, same as Van's bracket).  Came out great.

Mounted the governor to the engine.  Then mounted the bracket to the governor head, adjusted the clocking of the control lever, and finally tightened down and safetied the 6 head screws.

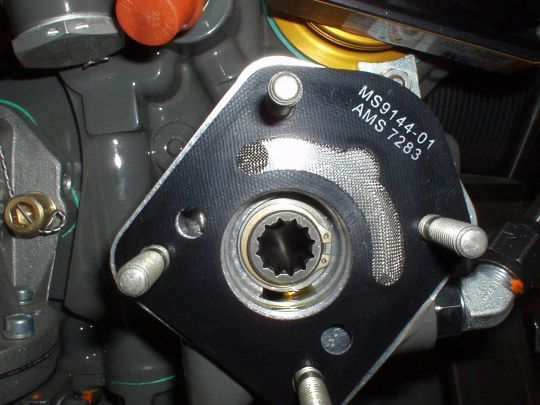

Below: The prop gov pad on the rear accessory case of the engine, with the gasket that came with the engine.

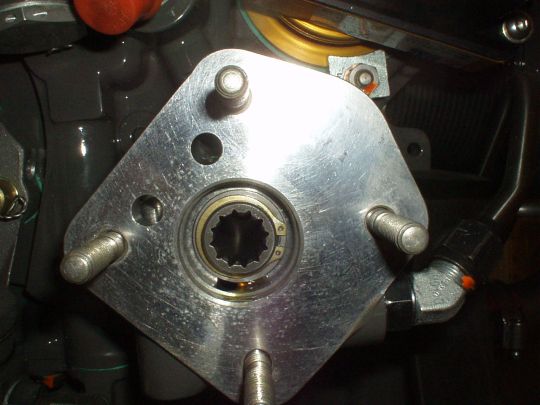

Below: The pad with gasket removed.

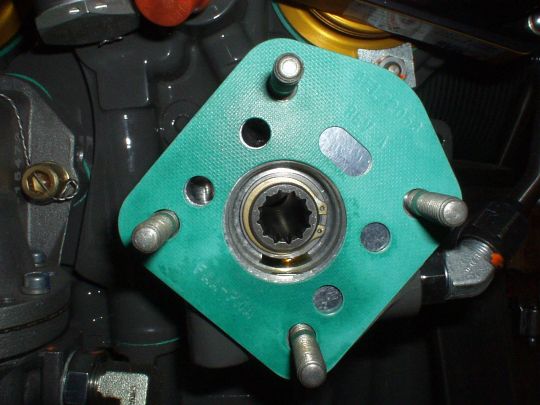

Below: The gasket that came with the prop gov.  Note that it has extended cutouts and a filter screen.

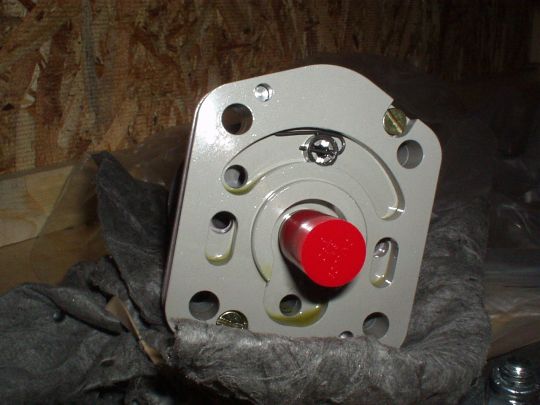

Below: The base of the PCU5000X governor, with protective plastic cap over the drive spline.

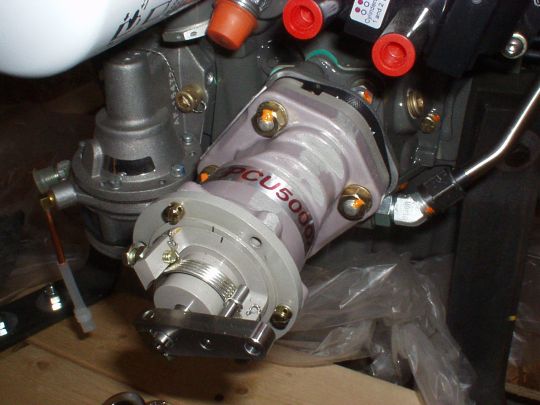

Below: the PCU5000X governor mounted to the engine.

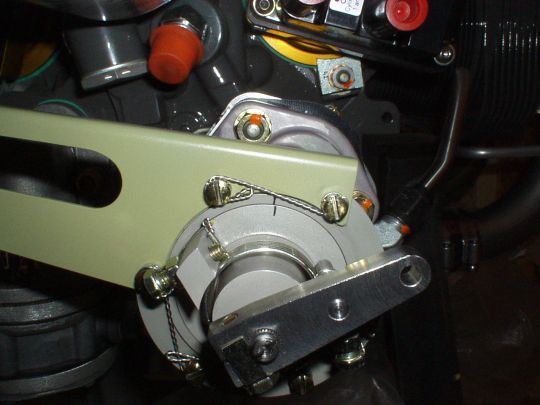

Below: The bracket I made mounted to the governor, control lever clocking adjusted, and the 6 head screws are tightened and safety wired.
