Manifold Pressure Plumbing

Running Total Hours: 0.0



2011.08.18: (0.0) The manifold pressure tap is taken from a port on cylinder no. 3 (right rear of the engine).  From there it is plumbed to each of the two P-Mags and to the MAP sensor on the firewall (forward side, upper left).  Nothing magic about this, but to document some details:

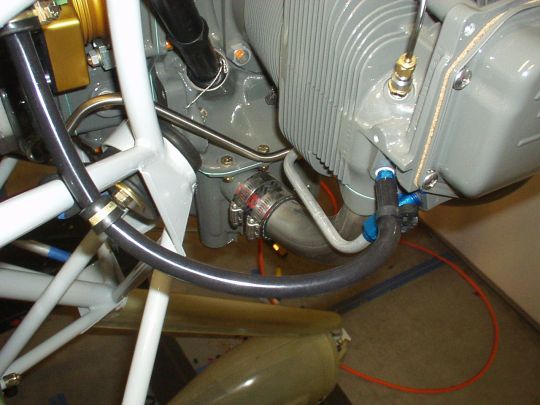

At the no. 3 cylinder I used a AN840-4D nipple, modified by squeezing an AN470A6-7 rivet into the nipple end, remove excessive material from the rivet head, and drilling a small hole through it, just to make a smaller constriction.  The AN840 was then threaded into the cylinder with Loctite 567 high-temp thread sealant.

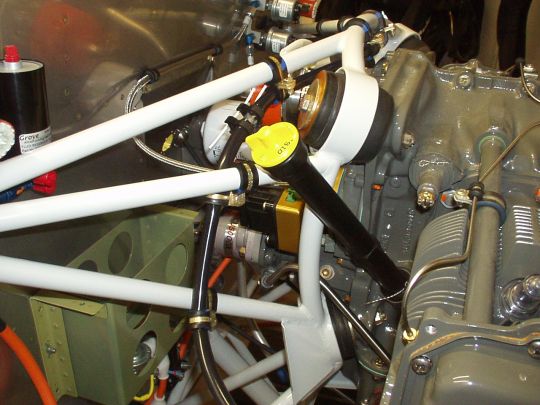

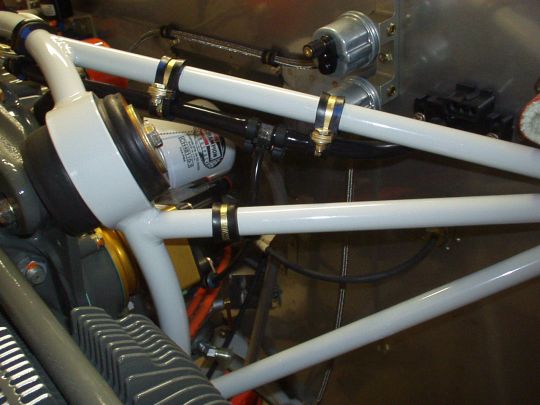

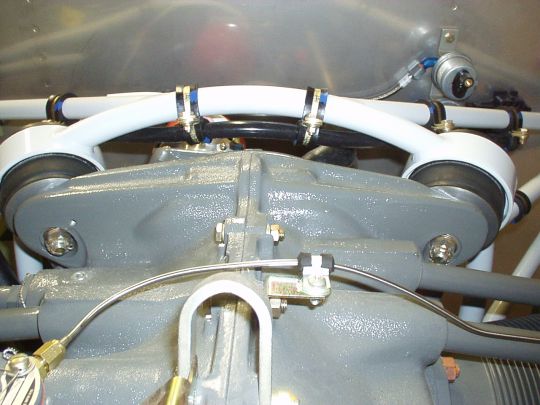

From the no. 3 cylinder to the MAP sensor I used 1/2" OD, 1/4" ID, high-temp silicone rubber tubing (McMaster-Carr p/n 5236K882).  I secured it to the upper tubes of the engine mount using MS21919 adel clamps.  From this main tube I tee'd off smaller tubes (1/4" OD, 1/8" ID, p/n 5236K832) to each of the P-Mags.  The reducing tees are McMaster-Carr p/n 5117K33.  I also used nylon "Herbie" clips to secure the tubing at every nipple.  These are Aircraft Spruce p/n 05-02695 (1/2") and 05-02698 (1/4").
